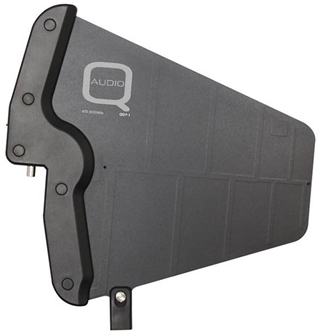

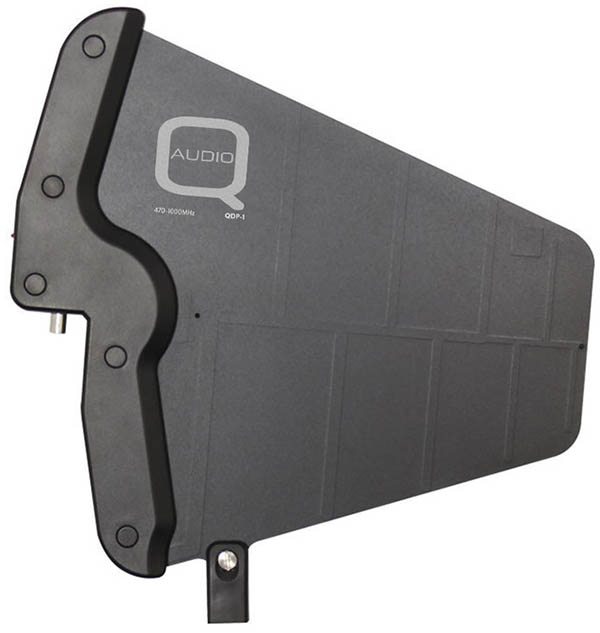

Wireless Microphone UHF Remote Paddle Antenna

This is a UHF wideband antenna splitter designed for use with up to four radio microphone receivers. It features a dual 1:4 configuration, making it suitable for up to four diversity receivers and allowing two Q-Audio active antennas (QDP1) to be used across multiple receivers. This setup helps reduce intermodulation and minimizes RF signal dropout.

The unit includes a loop-through function for system expansion and operates within a wide frequency range of 400–1000 MHz. It offers DC power distribution and BNC antenna connections, along with a 9V DC bias output (100mA) compatible with active antennas. An on/off switch with an LED power indicator is also included.

The splitter comes supplied with a 13A UK power supply unit (12V DC, 5A), four 0.2m DC link cables, ten 0.5m BNC cables, and two 5.0m BNC cables.
